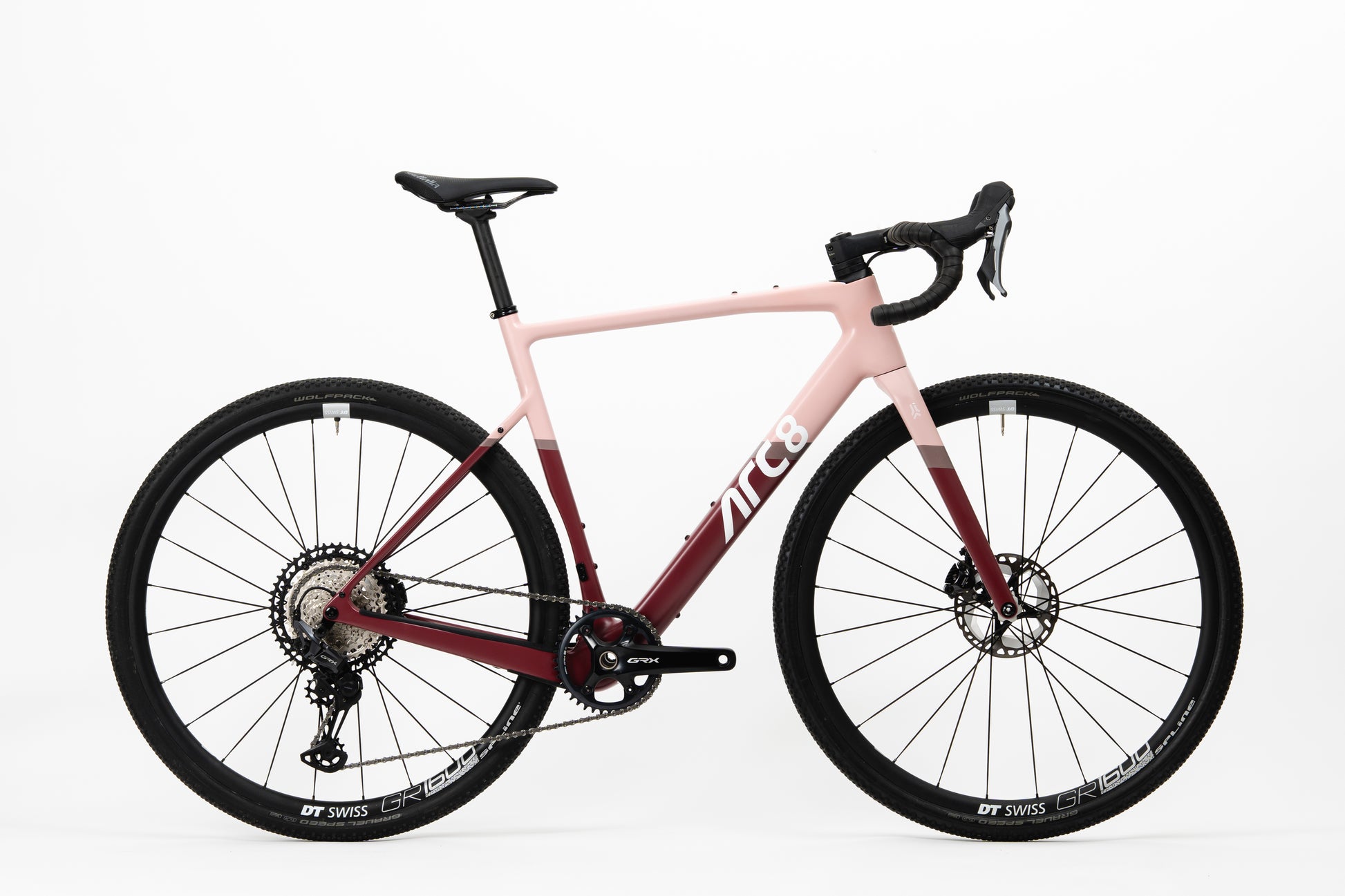

Complete Bike ARC8 Eero Pink – MK-Bicycles

END OF SEASON SALE - price campaign for ARC8 Essential II & ARC8 Evolve FS models

FASERWERK„LUFTSCHNEIDER“ - The most efficient aerodynamic update on your bike.

ARC8 EERO - new shades available

ARC8 ESCAPEE DB - now equipped with the new Red AXS

Geometry
Specs
Size Guide

		S	M	L	XL
	Rider Height	170-176	175-181	180-187	>187
A	Reach	364	376	388	400
B	Stack	545	568	593	618
C	Top Tube Length	525	545	564	583
D	Seat Tube Length	510	550	570	600
E	Seat Tube Angle	73.5	73.5	73.5	73.5
F	Head Tube Angle	70	71	71	71
G	Head Tube Length	137	157	170	197
H	Fork Offset	50	50	50	50
I	Fork Length	395	395	395	395
J	Chain Stay Length	420	420	420	420
K	Wheelbase	1002	1012	1032	1053
L	BB Drop	75	75	75	75
	Stand Over Height	774	809	830	858

	GRX mech. 1x12	GRX mech. 2x12	GRX Di2 2x12	Force eTap AXS
Gewicht	ca. 8,5 Kg	ca. 8,6 Kg	ca. 8,6 Kg	ca. 8,4 Kg
Frame	ARC8 Eero, Carbon	ARC8 Eero, Carbon	ARC8 Eero, Carbon	ARC8 Eero, Carbon
Fork	ARC8 Eero, Carbon	ARC8 Eero, Carbon	ARC8 Eero, Carbon	ARC8 Eero, Carbon
Seat post	Faserwerk Wuthocker 0mm Offset, 400mm	Faserwerk Wuthocker 0mm Offset, 400mm	Faserwerk Wuthocker 0mm Offset, 400mm	Faserwerk Wuthocker 0mm Offset, 400mm
Headset	ARC8	ARC8	ARC8	ARC8
Axle	M12xP1.5; 100mm & 142mm	M12xP1.5; 100mm & 142mm	M12xP1.5; 100mm & 142mm	M12xP1.5; 100mm & 142mm
Stem	ICH Stem	ICH Stem	ICH Stem	ICH Stem
Handlebar	Alloy handlebar with flair	Alloy handlebar with flair	Alloy handlebar with flair	Alloy handlebar with flair
Handlebar tape	Faserwerk Handschmeichler	Faserwerk Handschmeichler	Faserwerk Handschmeichler	Faserwerk Handschmeichler
Saddle	Selle Italia Novus Boost	Selle Italia Novus Boost	Selle Italia Novus Boost	Selle Italia Novus Boost
Brake	Shimano GRX 820	Shimano GRX 820	Shimano GRX 825	Sram FORCE eTap AXS
Rotor	Shimano RT800 160mm / 160mm	Shimano RT800 160mm / 160mm	Shimano RT800 160mm / 160mm	Sram Centerlock Paceline 160mm / 160mm
Group	Shimano GRX 820; 42t	Shimano GRX 820; 48-31	Shimano GRX 820; 48-31	Sram Force 40T / 12-spd
Cassette	Shimano CSM8100; 10-51	Shimano CSR8100 11-34	Shimano CSR8100 11-34	Sram XG1271 / 12-spd / 10-44T
Battery			Shimano BTDN300	Sram Powerpack / incl. Charger
Wheel	DT Swiss G 1800	DT Swiss G 1800	DT Swiss GR1600 / Carbon Wheels	DT Swiss GR1600 / GRC1400
Tire	Pirelli Cinturato™ GRAVEL H 40-622	Pirelli Cinturato™ GRAVEL H 40-622	Pirelli Cinturato™ GRAVEL H 40-622	Pirelli Cinturato™ GRAVEL H 40-622
Tube	Tubeless	Tubeless	Tubeless	Tubeless

Frame Size	Stem	Bar	Crankset
S	80mm	400mm	172,5mm
M	90mm	420mm	172,5mm
L	100mm	420mm	175mm
XL	110mm	440mm	175mm
