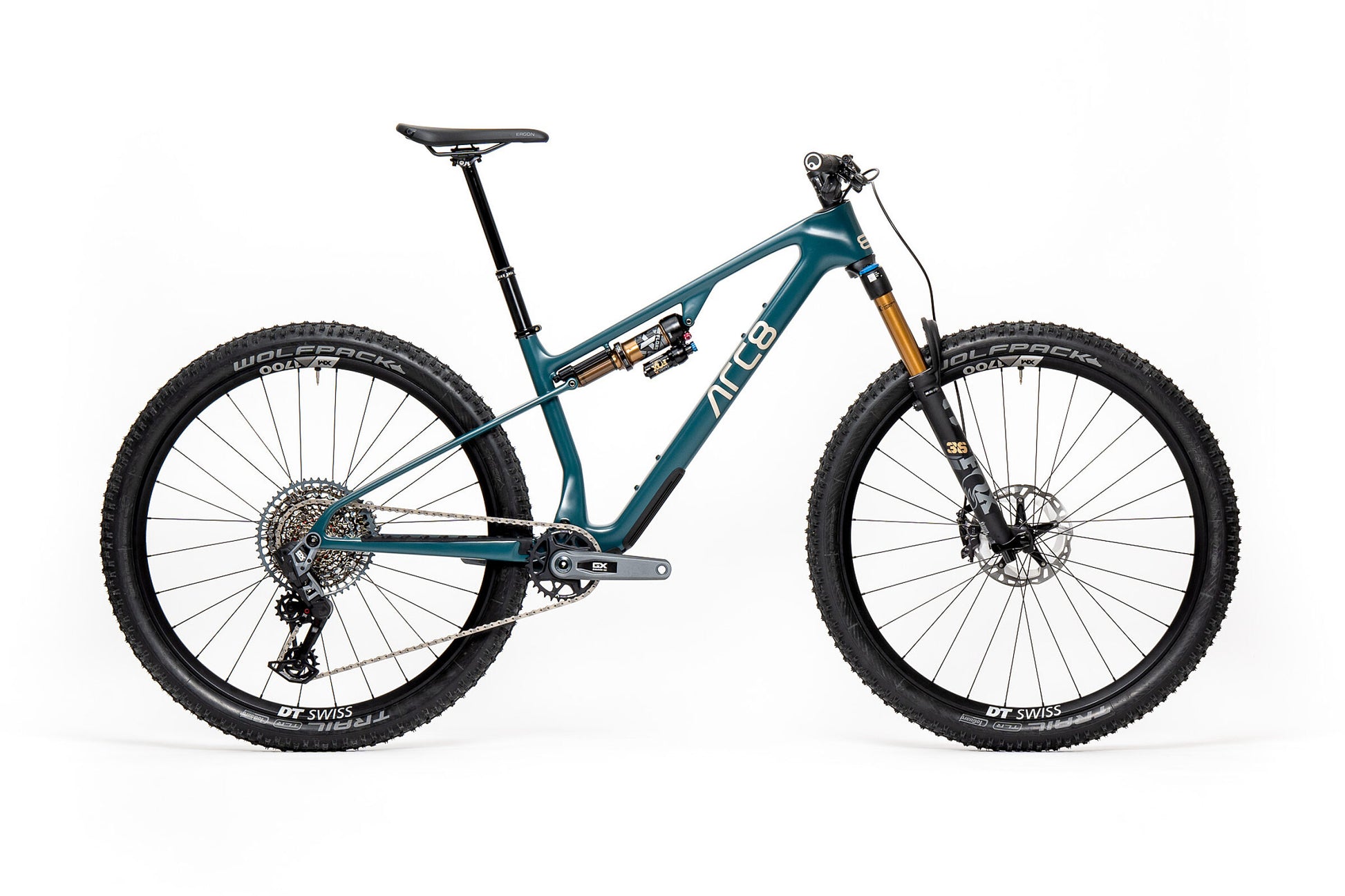

Complete Bike ARC8 Essential II Petrol
Complete Bike ARC8 Essential II Petrol
Regular price
€4.999,00 EUR
Regular price
Sale price
€4.999,00 EUR
Unit price
per
Taxes included.
Couldn't load pickup availability
- Geometry
- Specs
- Size Guide
| SIZE | M | L | |
|---|---|---|---|
| Rider Height | 160-178 | 178-190 | |
| A | Reach | 465 | 495 |
| B | Stack | 615 | 628 |
| C | TT | 596 | 652 |
| D | ST | 410 | 440 |
| Max. Seatpost Insertion | 245 | 265 | |
| E | SA (virtual) | 76 | 76 |
| SA (real) | 71 | 71 | |
| F | HA | 64 | 64 |
| G | HT | 100 | 115 |
| H | Fork Offset | 44 | 44 |
| I | Fork A-C | 561 | 561 |
| J | CS | 430 | 430 |
| K | Wheelbase | 1222 | 1259 |
| L | BB Drop | 40 | 40 |
| M | Standover | 702 | 704 |
| XT Fox 36 Performance 150 mm | GX AXS Fox 36 Factory 150 mm | XT Di2 Fox 36 Factory 150 mm | |
|---|---|---|---|
| Gewicht | ca. 12,4 KG | ca. 12,2 KG | ca. 9,8 KG |
| Frame | ARC8 Essential, full carbon | ARC8 Essential, full carbon | ARC8 Essential, full carbon |
| Fork | Fox 36 Float Performance 150mm Grip | Fox 36 Float SL Factory 150mm Grip2 | Fox 36 Float SL Factory 150mm Grip2 |
| Shock | Fox Float X Performance | Fox Float X Factory | Fox Float X Factory |
| Seat post | RaceFace Aeffect R 170mm | BikeYoke Revive 160mm / 185mm | BikeYoke Revive 160mm / 185mm |
| Headset | Acros AIF-531 | Acros AIF-531 | Acros AIF-531 |
| Axle | M12xP1.0; 148mm | M12xP1.0; 148mm | M12xP1.0; 148mm |
| Stem | Newmen Evolution 40mm /50mm | Faserwerk Baslerstab 35 / 50mm | Faserwerk Baslerstab 35 / 50mm |
| Handlebar | Puretek DH 780mm 15mm Rise | Faserwerk Baslerstab, 800 mm, carbon | Faserwerk Baslerstab, 800 mm, carbon |
| Grips | Ergon GA20 | Ergon GA20 | Ergon GA20 |
| Saddle | Ergon SM10 Stealth | Ergon SM10 Stealth | Ergon SM10 Stealth |
| Brake | Shimano XT M8120 4-Piston / M8110 2-Piston | Shimano XT M8120 4-Piston / M8110 2-Piston | Shimano XT M8120 4-Piston / M8110 2-Piston |
| Rotor | Shimano XT RT-CL800 203mm/ 180mm | Shimano XT RT-CL800 203mm/ 180mm | Shimano XT RT-CL800 203mm/ 180mm |
| Group | Shimano XT FC-M8120 32T 170mm | Sram GX Eagle T-Type 32t 170mm | Shimano XT FC-M8120 32T 170mm |
| Cassette | Shimano XT CS-M8100 / 10-51T | Sram XS 1275 T-TYPE 10-52 | Shimano XT CS-M8100 / 10-51T |
| Battery | Sram Powerpack | Battery BT-N320 | |
| Wheel | DT Swiss XM1700 30 mm | DT Swiss XM1700 30 mm | DT Swiss XM1700 30 mm |
| Tire | Maxxis Dissector Exo+ Maxx Terra 29x2.4WT | Maxxis Dissector Exo+ Maxx Terra 29x2.4WT | Maxxis Dissector Exo+ Maxx Terra 29x2.4WT |
| Tube | Tubeless 200 ml tire sealant | Tubeless 200 ml tire sealant | Tubeless 200 ml tire sealant |
| Frame Size | Stem | Bar | Crank |
|---|---|---|---|
| M | 35mm | 800mm | 170mm |
| L | 50mm | 800mm | 170mm |
