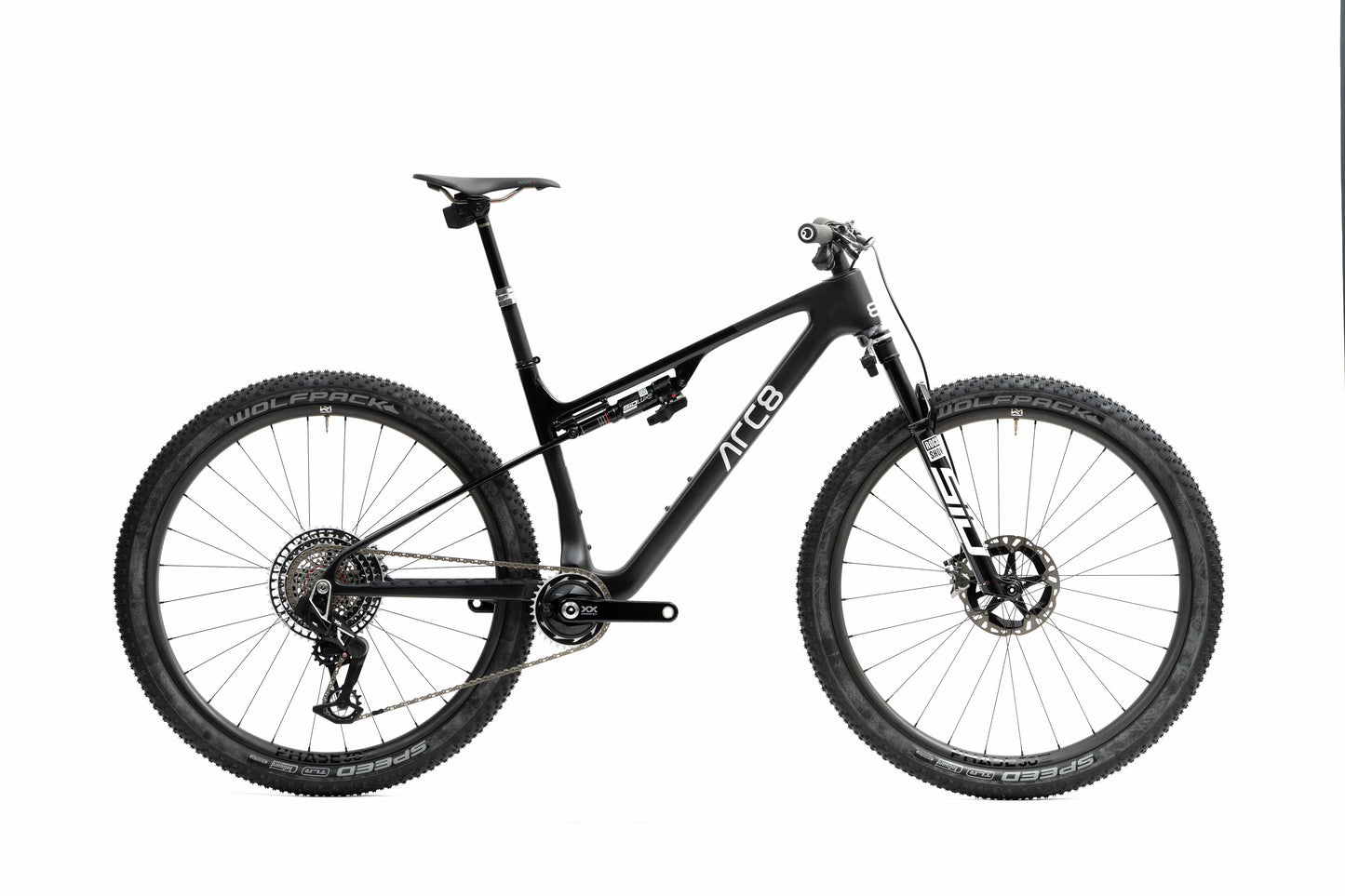

Complete Bike ARC8 Evolve FS Black – MK-Bicycles

FASERWERK„LUFTSCHNEIDER“ - The most efficient aerodynamic update on your bike.

ARC8 EERO - new shades available

ARC8 ESCAPEE DB - now equipped with the new Red AXS

Geometry
Specs
Size Guide

Size		M (120 MM FORK)	M (100 MM FORK)	L (120 MM FORK)	L (100 MM FORK)
	Rider Height	160-178	160-178	178-190	178-190
A	Reach	465	477	495	507
B	Stack	588	579	597	588
C	TT	612	609	635	632
D	ST	440	440	480	480
E	SA (virtual)	76	77.1	76	77.1
	SA (real)	72.7	73.8	72.7	73.8
F	HA	65	66.1	65	66.1
G	HT	100	100	110	110
H	Fork Offset	42	42	42	42
I	Fork A-C	530	503	530	503
J	CS	430	430	430	430
K	Wheelbase	1200	1189	1234	1223
L	BB Drop	35	43	35	43
M	Standover	684	674	682	672

	XT Fox Performance 120mm	GX AXS Fox Performane	GX AXS Fox Factory with or without Remote	XTR Di2 Fox Factory with or without Remote	XX SL Fox Factory with or without Remote	XX SL Rock Shox SID SL 110mm Flight Attendant
Gewicht	ca. 10,7 Kg				ca. 9,4 Kg	ca. 9,7 Kg
Frame	ARC8 Evolve FS, full carbon	ARC8 Evolve FS, full carbon	ARC8 Evolve FS, full carbon	ARC8 Evolve FS, full carbon	ARC8 Evolve FS, full carbon	ARC8 Evolve FS, full carbon
Fork	Fox 34 SC Float Performance 120mm GRIP	Fox 34 SC Float Performance 120mm GRIP	Fox 34 SC Float Factory 120mm FIT4 with or without Remote	Fox 34 SL Float Factory 120mm FIT4 with or without Remote	Fox 34 SL Float Factory 120mm FIT4 with or without Remote	Rock Shox SID SL Ultimate 120mm with or without Flight Attendant
Shock	Fox Float DPS Performance	Fox Float DPS Performance	Fox Float DPS Factory with or without Remote	Fox Float SL Factory with or without Remote	Fox Float SL Factory with or without Remote	Rock Shox SIDLuxe Ultimate with or without Flight Attendant
Seat post	BikeYoke Divine SL	BikeYoke Divine SL	BikeYoke Divine SL	BikeYoke Divine SL	BikeYoke Divine SL	Rock Shox Reverb AXS 125mm
Headset	Acros AIF-531	Acros AIF-531	Acros AIF-531	Acros AIF-531	Faserwerk Baslerstab 35 / 50mm	Faserwerk Baslerstab 35 / 50mm
Axle	M12xP1.0; 148mm	M12xP1.0; 148mm	M12xP1.0; 148mm	M12xP1.0; 148mm	M12xP1.0; 148mm	M12xP1.0; 148mm
Stem	Faserwerk Baslerstab 35mm / 50mm	Faserwerk Baslerstab 35mm / 50mm	Faserwerk Baslerstab 35mm / 50mm	Faserwerk Baslerstab 35 / 50mm	Faserwerk Baslerstab 35 / 50mm	Faserwerk Baslerstab 35 / 50mm
Handlebar	Faserwerk Baslerstab, 800 mm, carbon	Faserwerk Baslerstab, 800 mm, carbon	Faserwerk Baslerstab, 800 mm, carbon	Faserwerk Baslerstab, 800 mm, carbon	Faserwerk Baslerstab, 800 mm, carbon	Faserwerk Baslerstab, 800 mm, carbon
Grips	Ergon GXR	Ergon GXR	Ergon GXR	Ergon GXR	Ergon GXR	Ergon GXR
Saddle	Repente Quasar	Repente Quasar	Repente Quasar	Repente Quasar	Repente Quasar	Repente Quasar
Brake	Shimano XT 8100 / 8110 2-Piston	Shimano XT 8100 / 8110 2-Piston	Shimano XT 8100 / 8110 2-Piston	Shimano XTR 9100 / 9110 2-Piston	Shimano XTR 9100 / 9110 2-Piston	Shimano XTR 9100 / 9110 2-Piston
Rotor	Shimano RT-MT800M 180mm / 180	Shimano RT-MT800M 180mm / 180	Shimano RT-MT800M 180mm / 180	Shimano RT-MT900M 180mm / 180mm	Shimano RT-MT900M 180mm / 180mm	Shimano RT-MT900M 180mm / 180mm
Group	Shimano XT 8120 32t 55mm 175mm	Sram GX Eagle T-Type 32t 170mm	Sram GX Eagle T-Type 32t 170mm	Shimano XTR 9125 34t 55mm 175mm	Sram XX SL Eagle 34t 170mm or 175mm	Sram XX SL Eagle 34t 170mm or 175mm
Cassette	Shimano XT CS-M8100 / 10-51T	Sram XS 1275 T-TYPE 10-52	Sram XS 1275 T-TYPE 10-52	Shimano XTR CS-M9100 / 10-51T	Sram XS 1299 T-TYPE 10-52	Sram XS 1299 T-TYPE 10-52
Battery		Sram Powerpack	Sram Powerpack		Sram Powerpack	Sram Powerpack
Wheel	DT Swiss XM1700 30 mm	DT Swiss XM1700 30 mm	DT Swiss XM1700 30 mm	NEWMEN Phase 30 light	NEWMEN Phase 30 light	NEWMEN Phase 30 Vonoa light
Front tire	Wolfpack Cross 29x2,4 / Speed 29x2,4	Wolfpack Cross 29x2,4 / Speed 29x2,4	Wolfpack Cross 29x2,4 / Speed 29x2,4	Wolfpack Cross 29x2,4 / Speed 29x2,4	Wolfpack Speed 29x2,4	Wolfpack Speed 29x2,4
Tube	Tubeless 200 ml tire sealant	Tubeless 200 ml tire sealant	Tubeless 200 ml tire sealant	Tubeless 200 ml tire sealant	Tubeless 200 ml tire sealant	Tubeless 200 ml tire sealant

Frame Size	Stem	Bar
M	35mm	800mm
L	50mm	800mm
