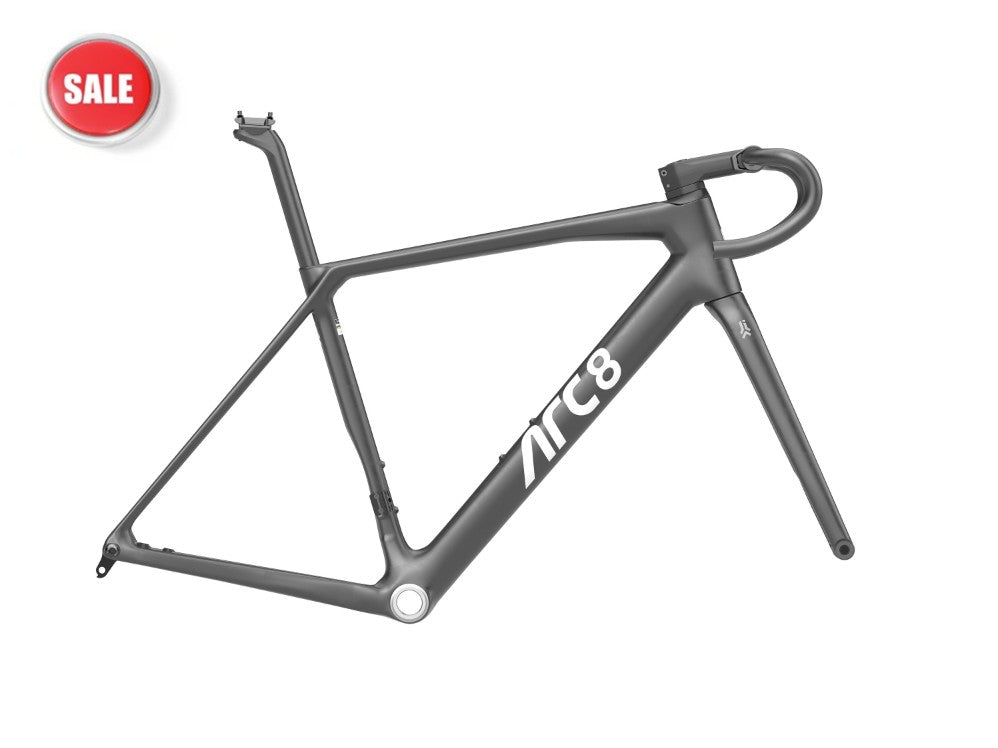

Frameset ARC8 Escapee DB Black/White

€2.799,00 EUR

Sale Please select options

Taxes included.

Wheelset DT 240s available from end of January 2025

Color

Size 60cm

Handlebar/ Cockpit with Carbon Handlebar with Faserwerk Luftschneider Cockpit

Wheels without Wheels Wheelset DT Swiss 350 38mm Wheelset DT Swiss 350 50mm Wheelset DT Swiss 240 38mm Wheelset DT Swiss 240 50mm Wheelset DT Swiss ARC1400 50mm

View full details

Geometry
Specs
Size Guide

Size		48	51	54	57	60
	Rider Height	<170	170-176	175-181	180-187	>187
A	Reach	357	369	380	393	405
B	Stack	505	522	541	560	580
C	Top Tube Length	506	523	540.5	558.5	576
D	Seat Tube Length	422	453	477	499	521
E	Seat Tube Angle	73.5	73.5	73.5	73.5	73.5
F	Head Tube Angle	70.5	72	72	72	72
G	Head Tube Length	103	116	135	156	176
H	Fork Offset	50	50	50	50	50
I	Fork Length	375	375	375	375	375
J	Chain Stay Length	402	402	402	402	402
K	Wheelbase	959.5	978	982	1000	1018
L	BB Drop	71	71	71	71	71

	Frame Kit
Frame	ARC8, Escapee DB carbon
Fork	ARC8, Escapee DB carbon
Seat post	ARC8 SP Carbon 15mm offset, 400mm / Faserwerk Wuthocker 0mm offset, 400mm
Headset	ARC8
Axle	M12xP1.5; 100mm & 142mm
Stem	ICH Stem
Handlebar	Carbon handlebar

Frame Size	Stem	Bar
48	70mm	400mm
51	80mm	400mm
54	90mm	420mm
57	100mm	440mm
60	110mm	440mm
